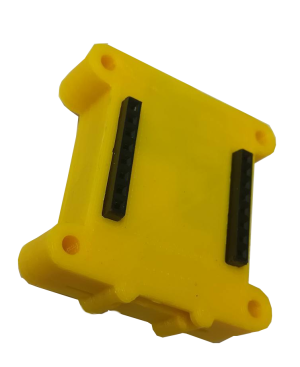

Sensor Module

Sensor module connects other module devices into the controller

Specifications

  • Two 3,5mm jacket inputs
  • 5 front pins

3.5 3 channel socket, 3.5 4 channel socket

connector⇒socket

Electrical connection

Sensor I/O is connected to ports: GPIO4, GPIO5, GPIO6, GPIO7, A0
